Drone EC 11
The EC 11 quadcopter is long endurance and multi-functional flight platform
| Category: | Drones |
|---|
Custom R&D
In-house software research and development
Official T-drones distributor
1 year warranty
and specialized after-sales service

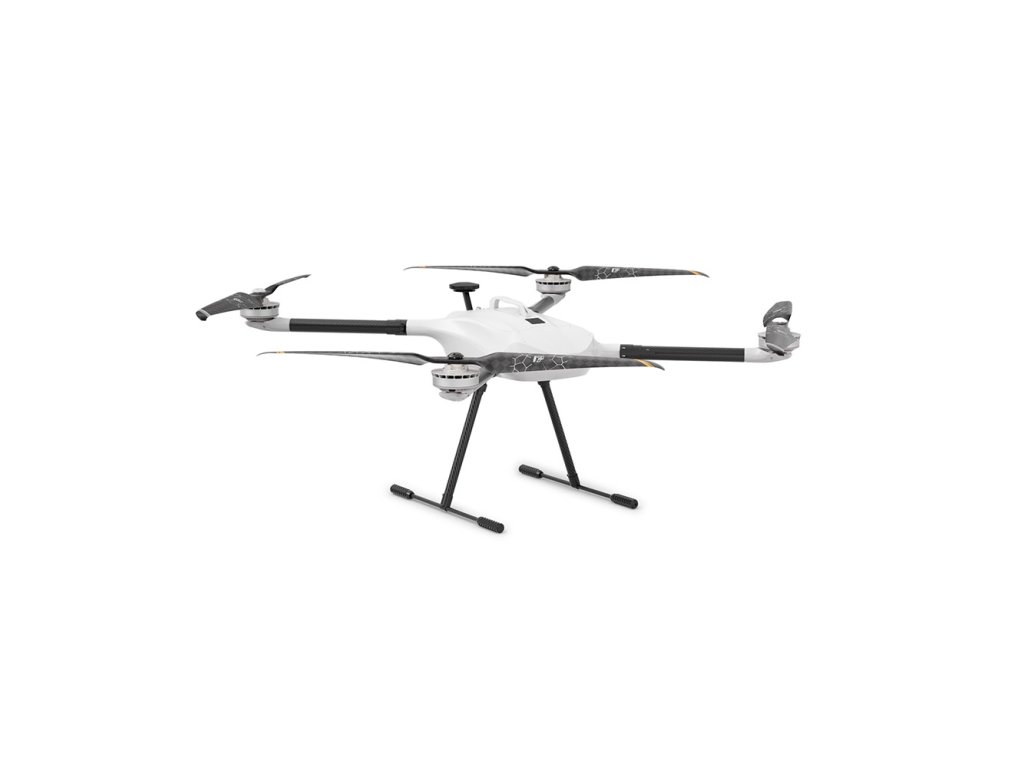

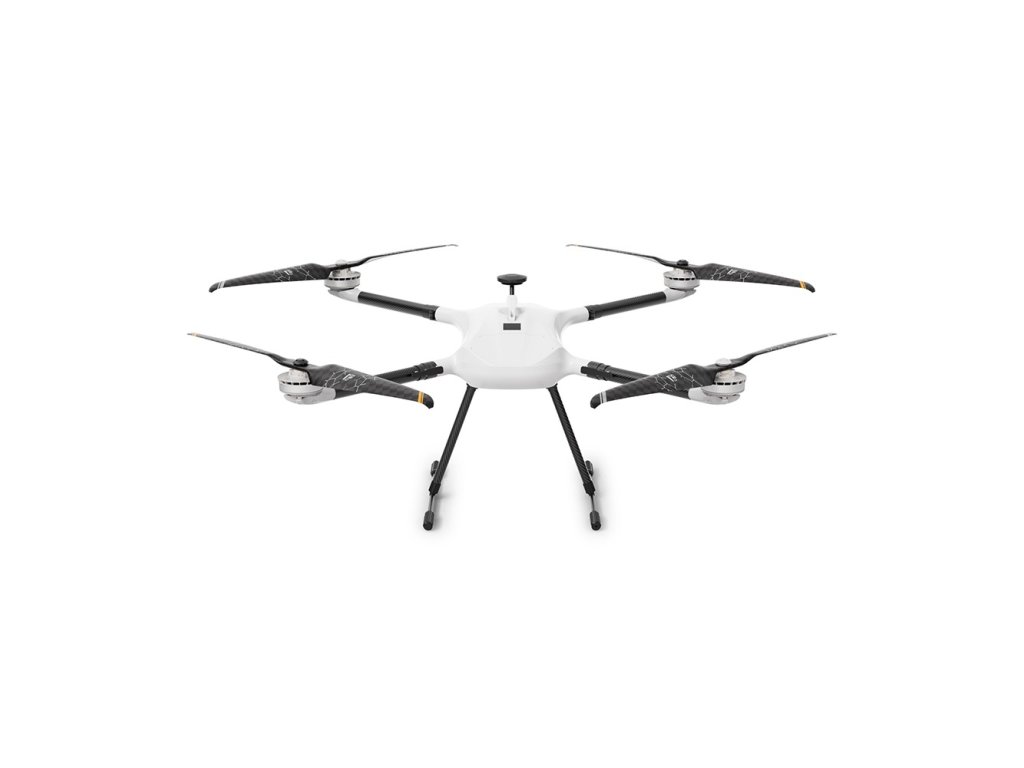

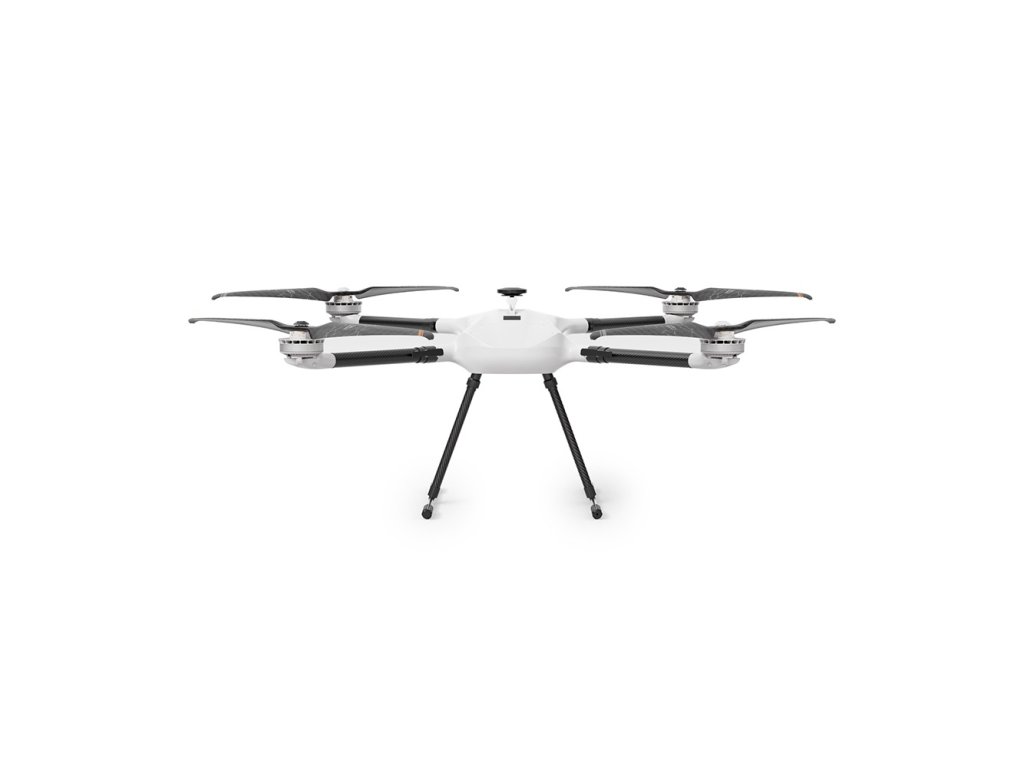

EC 11 Overview
EC 11, a long-endurance and multi-functional flight platform. EC 11 could fly up to 120 minutes(2kg payload) for easy mission accomplishment with abundant time. User-friendly PMM and flexible mounting methods guarantee its compatibility with various devices.
Thanks to the long effective communication distance, excellent protection rate, you can shuttle in different environments leisurely. The frames are specifically developed for the designated propulsion system and can reach extremely long flight times with low weight and high endurance.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | EC 11 |
| Wheelbase | 1130mm |
| Drone Of Weight | 10.5kg (Including 2kg Load And Battery) |
| Payload |
0.5-5kg |
| Endurance | 1kg≤133min; 2kg≥120min; 5kg≥60min |
| Flight Altitude | 100~1000m (Typical); 4,500m Above Sea Level (Max.) |
| Maximum Horizontal Flight Speed | 20m/s |
| Maximum Ascending Speed | 5m/s |
| Maximum Descent Speed | 3m/s |
| Maximum Service Speed | 16m/s 115km |
| Economic speed/range/duration | 10m/s /85km/120min |
| Wind Resistance | Level 5 |
| Battery | 12S 36000mah |
| Limiting Cut-Off Voltage | 32V |
| Safe Cut-Off Voltage | 36V |
| Compatible Flight Control | DJI A3 / PIX/Micropilo |
| Unfolded Size | 894*882*356mm |
| Folding Size | 547*410*325mm |
