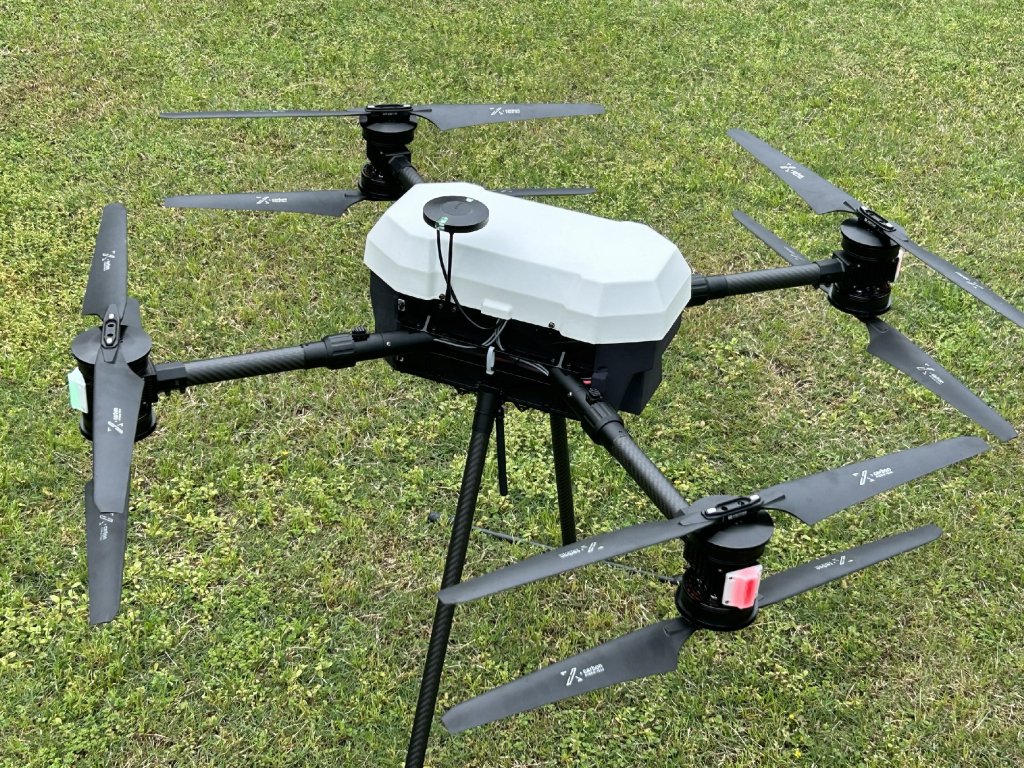

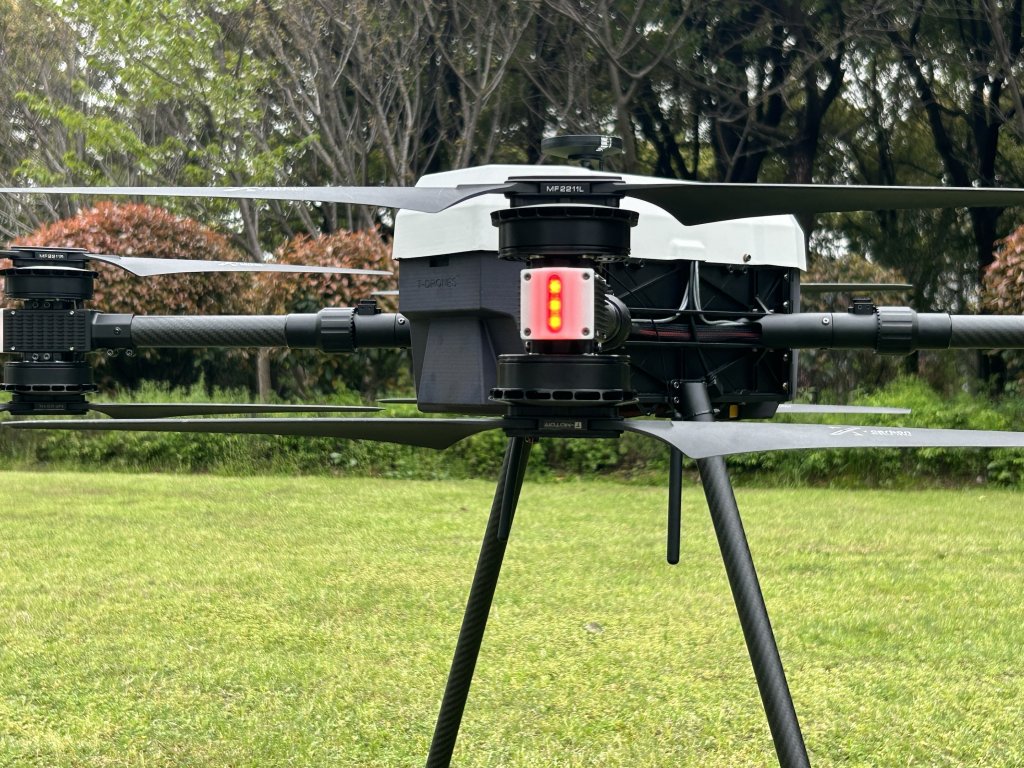

MX860 Overview
MX860 is a coaxial multi-rotor UAV with improved safety performance, remarkable load capacity, and flight time. It is small in size and low in cost which accurately meets the needs of customers.
Benefits and Features
1. Small yet Powerful - Compact design to minimize the size while the maximum payload could reach up to 9 kg.
2. Convenient Design - Easy to disassemble, fold, and carry, Transportation is no longer a hassle.
3. Lightweight Design - Extrusion forming of the integrated body with high-strength aviation aluminum for higher strength and lighter weight.
4. Long Flight Time - Up to 40mins under normal conditions(5kg payload)
5. Efficiency King - Professionally customized propulsion system.Abundant power redundancy, higher safety factor.
6. Multi-Directional Waterproof Protection - 1mm objects are no longer a threat to the motor.Free flight in almost all weather.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | MX860 |
| Wheelbase | 860mm |
| Weight of Drone(With Battery) | 9.96kg |
| Weight of Battery | 5.2kg(Two Ares 6S 30Ah batteries) |
| Max Take-off Weight | 19.96kg |
| Maximum Ascent Speed | 5m/s |
| Maximum Descending Speed | 3m/s |
| Maximum Horizontal Flight Speed | 20m/s |
| GPS Hover Accuracy | Vertical:+0.2m;Horizontal:+0.1m (without RTK) |
| Hover Time | 3kg≥49mins; 5kg≥40mins; 9kg≥24mins |
| Protection | IP52 |
| Maximum Tolerable Wind Speed | 14m/s |
| Working Temperature | -15℃~50℃ |
| Propulsion System | T-MOTOR |
| Dimensions Folded | 433*413.5*250mm(With Landing Gear,Without Props) |
| Packing Size | 520*515*385mm |
| Shipping Weight | 8.5kg(With Packaging) |
