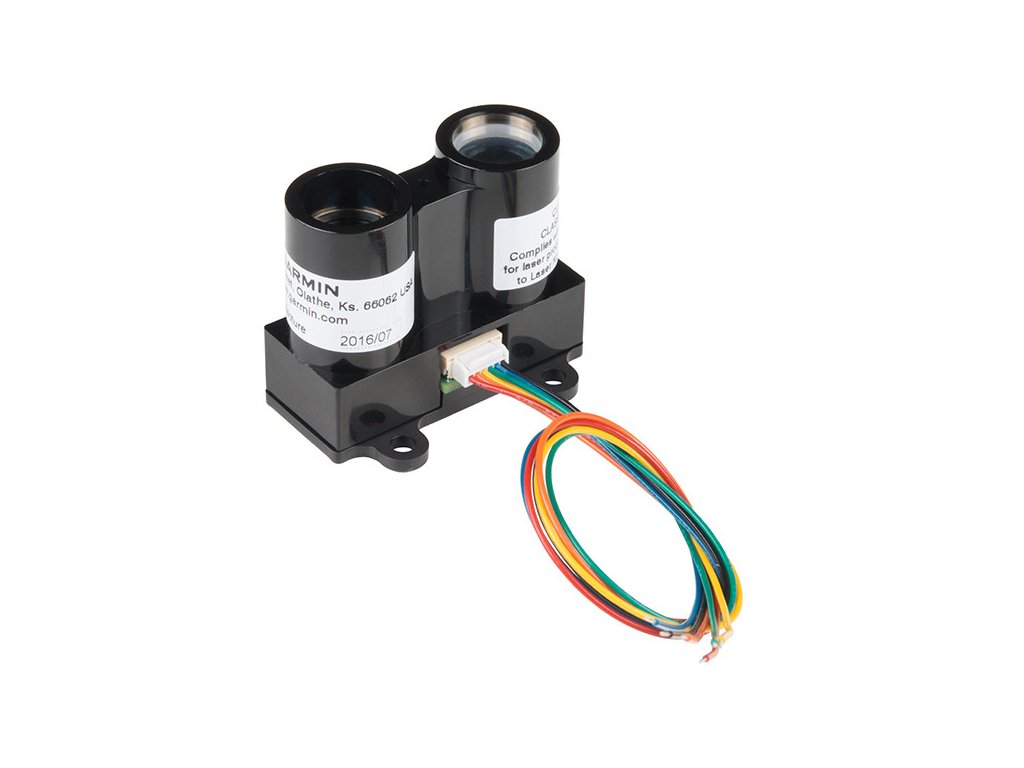

Sparkfun LIDAR-Lite v3
Category: | Electronics |
---|
Sparkfun LIDAR-Lite v3
Compact distance sensor from Garmin™. It is ideal for use in places where space is limited or the least possible weight is required (drones, robots, remote control carts).
This user-friendly 40m laser-based optical sensor has all the important features that made the LIDAR-Lite v2 famous. It is small, light and has a very low power consumption, less than 130 mA during a single measurement. It is easily adjustable, so you can adjust the accuracy, distance and measurement time.
Specifications
measuring distance: 0-40 m
accuracy: +/- 2.5 cm at distances greater than 1 m
power supply: 4.75–5V DC; 6 V Max
current consumption: 105 mA in idle state and 130 mA in working state
repetition rate: 1-500Hz
laser wavelength at maximum power: 905 nm/1.3 watts
beam divergence: 8 m Radian
optical aperture: 12.5 mm
interface: I2C or PWM
dimensions: 20 x 48 x 40 mm
