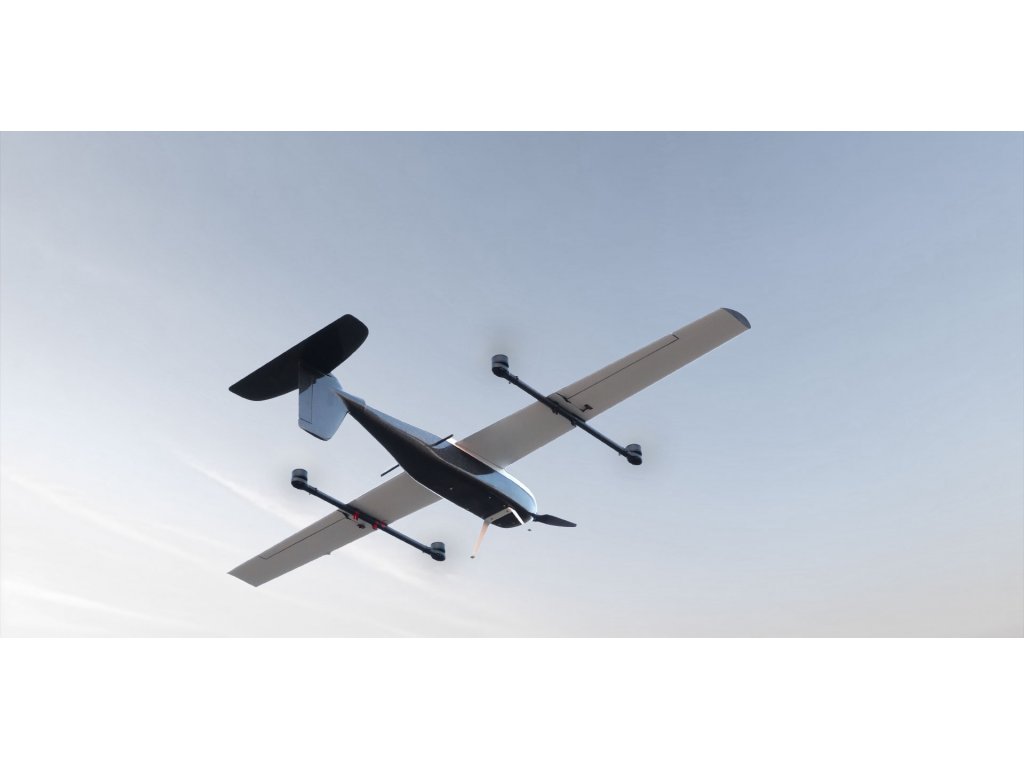

VA23 is a VTOL (vertical take off and landing) UAV platform with highly reliable power system and locking propeller design which greatly prolong the flight time and increase the safety and stability of UAV. It helps accomplish tasks you may require.
With a wingspan of 2300mm and a maximum support load of 2.5kg, the VA23 provides you with flight convenience, allowing you to navigate the skies with ease and explore the unknown.
The VA23 is a long-endurance eVTOL fixedwing UAV with an unloaded flight time of more than 240 minutes and a 1.5kg load over 180 minutes flight time. It's equipped with a power management module,locking propeller function, as well as lightweight and durable carbon fiber material to give you a longer flight time.
Carbon fiber material is adopted as the overall frame of the drone.The drone frame weighs only 2kg to achieve the flight goal of lightweight, high strength and excellent flight performance.
The VA23 has a quick-disassembly design,it requires no tools to travel conveniently,and it can be assembled in 3 minutes.
Equipped with backpack-type packing box, it provides smaller size in volume and light weight for shipping. SIZE: 120*30*35cm
LONG ENDURANCE - Up to 4h flight time,which improves your work efficiency.
Delivery:
Frame + propulsion system (motor+prop+esc).
Batteries, FC, and other components are not included
RTF option:
- Frame with propulsion
- Pixhak cube orange combo
| TECHNICAL PARAMETERS | ||
|---|---|---|
| Model | VA23 | |
| Frame Length | 1250 mm | |
| Frame Weight |
|
|
| Wingspan | 2300 mm | |
| Take off Weight | 12,5 kg | |
| Frame Material | Carbon Fiber Composite PVC | |
| Flight Time | 240 min（Without Payload, 180 min(1.5 kg payload) | |
| Wind Resistance | Level 5 | |
| Max range | 240 km | |
| Working Temperature | -15℃-50℃ | |
| Propulsion System | T-MOTOR | |
| Control System | Optional, Pixhawk recomended | |
| Max speed | 35 m/s | |
| Cruising Speed | 18 - 20 m/s | |
| Max payload | 2,5 kg | |
|
4500m | |
| Batteries | 12s - 22000mAh / 27000mAh / 30000mAh | |
