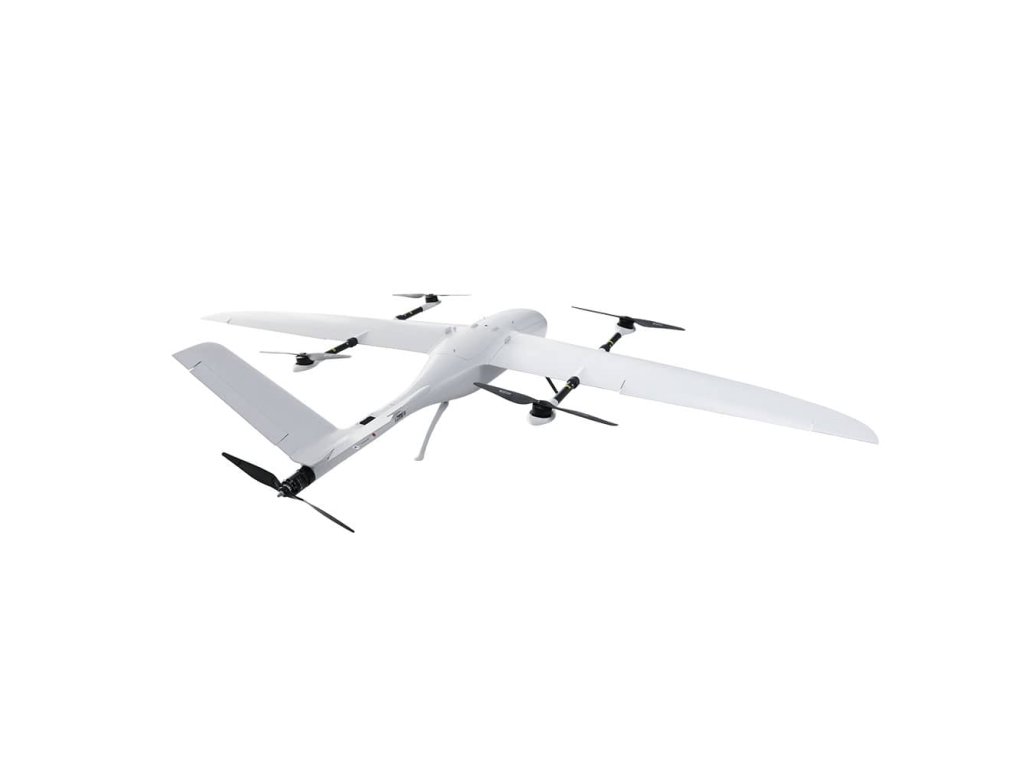

VA25 is a VTOL (vertical take off and landing) UAV platform with highly reliable power system and locking propeller design which greatly prolong the flight time and increase the safety and stability of UAV. It helps accomplish tasks you may require.
Delivery:

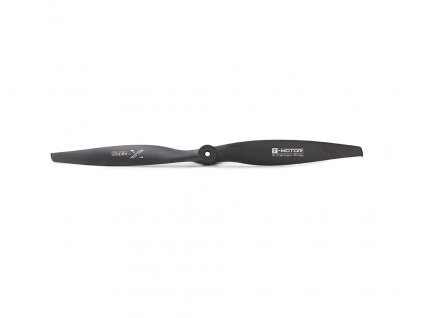

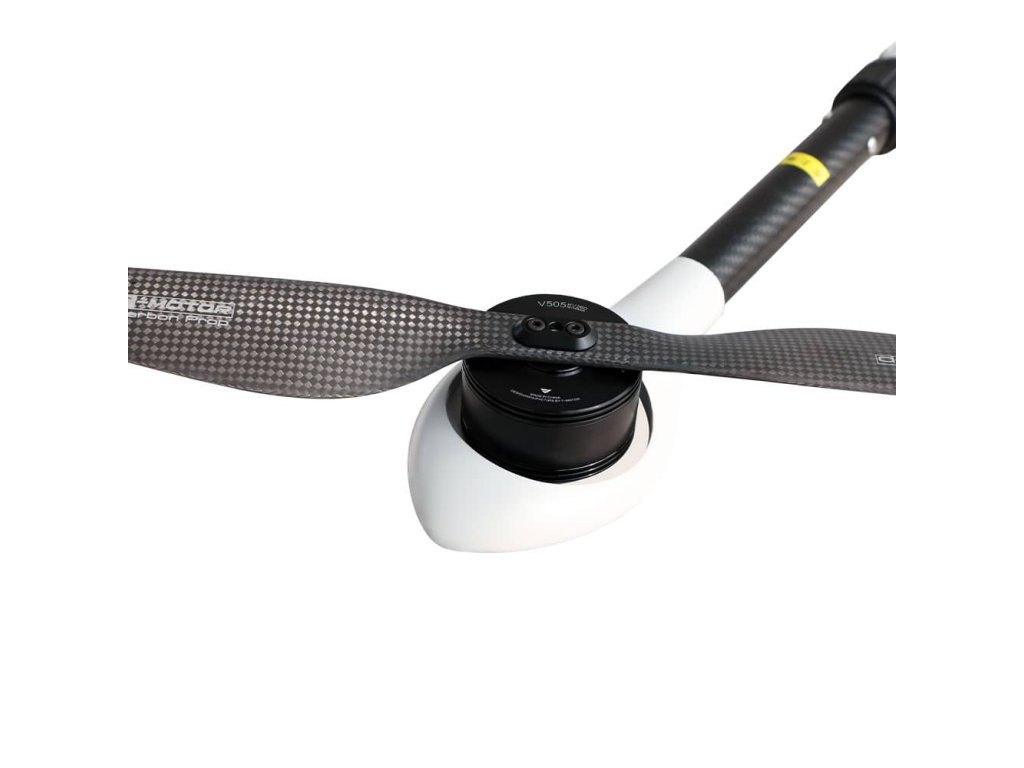

Frame + propulsion system (motor+prop+esc).
Batteries, FC, and other components are not included
RTF option:
- Frame with propulsion

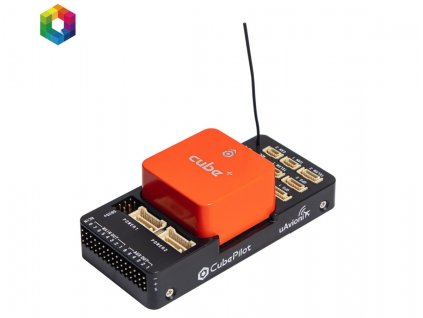

- Pixhak cube orange combo
| TECHNICAL PARAMETERS | |
|---|---|
| Model | VA25 |
| Frame Length | 1.56m（Including Pitot Tube1.62m） |
| Frame Weight | ＜3.5kg |
| Wingspan | 2.5m |
| Take off Weight | 13kg |
| Frame Material | Carbon Fiber Composite PVC |
| Flight Time | 210min（1kg Payload） |
| Wind Resistance | Level 6 |
| Protection | IP55 |
| Working Temperature | -15℃-50℃ |
| Propulsion System | T-MOTOR |
| Control System | PIXHAWK & CUAV |
| Speed Range | 80-120km/h |
| Cruising Speed | 80-90km/h |
| Payload | ＜2kg |
| Landing Way | Vertical Takeoff and Landing |

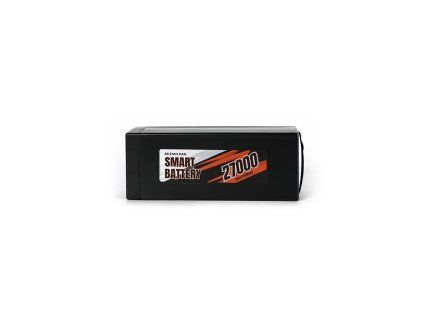

| Batteries | 2x Ares 6S 30Ah batteries |
